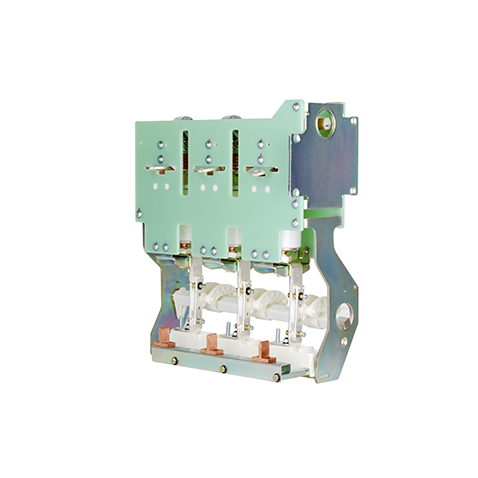

First, the standard three-station design (optional two stations), in line with the requirements of "GB3804-2017 3 ~ 63kV AC high-voltage load switch"
Second, the mature arc-extinguishing grid design ensures that the closing and arc-extinguishing arc is stable and reliable.
Third, select the disc spring to ensure that the contact pressure is stable and reliable for a long time.
Fourth, the plastic arm is subjected to low temperature experiments to ensure that it does not rupture or crack under low temperature conditions.
5. Reserve the grounding circuit copper bus interface to strengthen the grounding circuit closing and current withstand capability as needed.
Sixth, the grounding switch form is optional

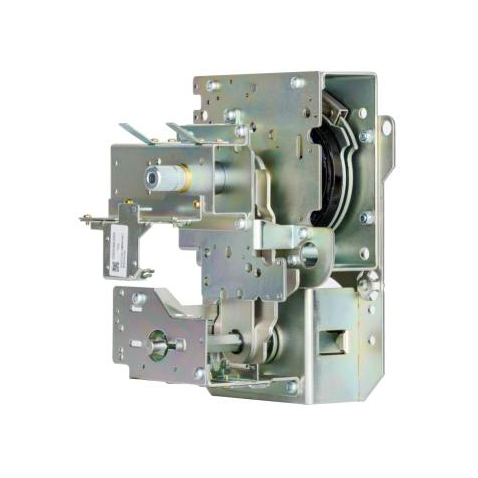

First, the standard three-station design meets the requirements of "GB3804-2017 3~63kV AC high-voltage load switch"
Second, the natural "five-proof" design (the load switch can be connected to the grounding switch after opening; the grounding switch can be combined with the load switch), mechanical and electrical double interlock
Third, the design has interlocking with the lower door panel (close the upper and lower door panels to separate the grounding switch; the grounding switch is closed to open the lower door panel), mechanical and electrical double interlocking
Fourth, the design has interlocking with the operating handle (the electric control loop is automatically cut off after the operating handle is inserted)
5. Redesigned door panel hard interlock, cancel the original steel wire (or plastic wire) design, interlocking is more reliable and stable

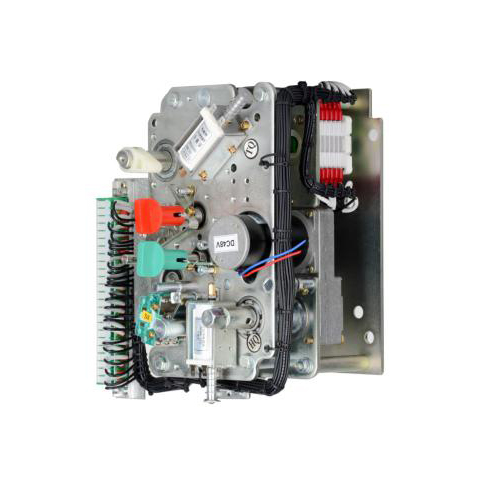

First, with reclosing design, in line with the operation timing of the national network breaker, in line with the requirements of "GB1984-2014 high voltage AC circuit breaker"
Second, energy storage, closing, opening logic, designed with mechanical interlocks to ensure correct operation sequence and prevent misuse.
Third, with mechanical interlocking of the isolating switch to ensure that the "five-proof" operation sequence (including forward and reverse interlocking) is met.
Fourth, optional opening operation hole
5. Reserve passive tripping, counters and other extended component positions, humanized design, convenient for retrofit
Sixth, miniaturized design. 325 wide cabinet can also accommodate
Seven, long-life design, stable and trouble-free closing and closing times ≥10,000 times

First, the standard station design, in line with the requirements of "GB1984-2014 high voltage AC circuit breaker"
Second, select Baoguang vacuum tube to ensure that the electrical life is in line with the national network E3 requirements.
Third, the cast human arm is carefully cast to ensure long-term operation and stable mechanical characteristics.
Fourth, large insulation board protection, electric field optimization design, to ensure the power frequency withstand voltage lightning impulse voltage qualified
5. All conductive parts and metal parts are rounded to optimize the electric field design and further improve the reliability of the switch.
Sixth, the grounding switch form is optional.

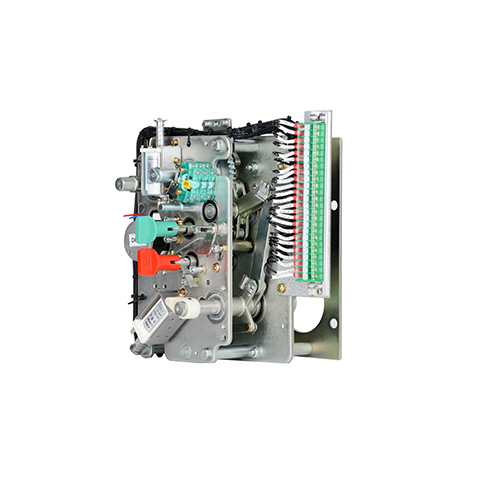

First, with reclosing design, in line with the operation timing of the national network breaker, in line with the requirements of "GB1984-2014 high voltage AC circuit breaker"
Second, energy storage, closing, opening logic, designed with mechanical interlocks to ensure correct operation sequence and prevent misuse.
Third, with mechanical interlocking of the isolating switch to ensure that the "five-proof" operation sequence (including forward and reverse interlocking) is met.
Fourth, optional opening operation hole
5. Reserve passive tripping, counters and other extended component positions, humanized design, convenient for retrofit
Sixth, miniaturized design. 325 wide cabinet can also accommodate
Seven, long-life design, stable and trouble-free closing and closing times ≥10,000 times

First, the standard three-station design meets the requirements of "GB16926-2009 high-voltage AC load switch fuse combination"
Second, the natural "five-proof" design (the load switch can be connected to the grounding switch after opening; the grounding switch can be combined with the load switch), mechanical and electrical double interlock
Third, the design has interlocking with the lower door panel (close the upper and lower door panels to separate the grounding switch; the grounding switch is closed to open the lower door panel), mechanical and electrical double interlocking
Fourth, the design has interlocking with the operating handle (the electric control loop is automatically cut off after the operating handle is inserted)
5. Redesigned door panel hard interlock, cancel the original steel wire (or plastic wire) design, interlocking is more reliable and stable
6. Shutdown energy storage during the closing process to avoid the over-level trip caused by pre-fault failure
Seven, optional overcurrent trip coil

First, the standard three-station design
Second, the natural "five-proof" design (the load switch can be connected to the grounding switch after opening; the grounding switch can be combined with the load switch), mechanical interlock
Third, the design has interlocking with the lower door panel (close the upper and lower door panels to separate the grounding switch; the grounding switch is closed to open the lower door panel), mechanical double interlocking
Fourth, the redesigned door panel hard interlock, cancel the original steel wire (or plastic wire) design, interlocking is more reliable and stable
5. Use with the circuit breaker mechanism
