JP integrated distribution box: The box is divided into 4 chambers, which are incoming, outgoing, metering and capacitor rooms. The utility model integrates electric energy metering, electric energy distribution and reactive power compensation device, and the compartment of the metering unit in the box is isolated from other units, and at the same time, there is a partition between the front and back sides of the box body to separate the strong and weak electricity in the box body. The cabinet fully considers the performance of ventilation, heat dissipation, dustproof and waterproof. The venting is arranged in the top cover and the two side walls to process the cooling holes. The stainless steel dustproof net is added to the cooling holes, and the diameter of the dustproof mesh should be no more than 1mm. A special waterproof connector is provided when the side is in the line to facilitate cable wiring.

JP integrated distribution box: The box is divided into 4 chambers, which are incoming, outgoing, metering and capacitor rooms. The utility model integrates electric energy metering, electric energy distribution and reactive power compensation device, and the compartment of the metering unit in the box is isolated from other units, and at the same time, there is a partition between the front and back sides of the box body to separate the strong and weak electricity in the box body. The cabinet fully considers the performance of ventilation, heat dissipation, dustproof and waterproof. The venting is arranged in the top cover and the two side walls to process the cooling holes. The stainless steel dustproof net is added to the cooling holes, and the diameter of the dustproof mesh should be no more than 1mm. A special waterproof connector is provided when the side is in the line to facilitate cable wiring.

The cable branch box is assembled by component modules and frame assembly structure, and the bus bar and the feedthrough are insulated and closed. Five types of structure can be used: the insulated switch with insulated insulation for the incoming line, the molded case circuit breaker for the outgoing line, the insulated switch with insulated switch for the incoming line, and the knife-melt switch for the outgoing line; the strip-shaped isolating switch for the incoming line and the strip for the outgoing line Switch (with fuse protection); the input line does not have a switch, the outlet line uses a knife fuse switch; the input and output lines are not equipped with switches. Note: The housing has metal or non-metal SMC.

The cable branch box is assembled by component modules and frame assembly structure, and the bus bar and the feedthrough are insulated and closed. Five types of structure can be used: the insulated switch with insulated insulation for the incoming line, the molded case circuit breaker for the outgoing line, the insulated switch with insulated switch for the incoming line, and the knife-melt switch for the outgoing line; the strip-shaped isolating switch for the incoming line and the strip for the outgoing line Switch (with fuse protection); the input line does not have a switch, the outlet line uses a knife fuse switch; the input and output lines are not equipped with switches. Note: The housing has metal or non-metal SMC.

A special box for low-voltage metering of power users, used to install metering equipment such as electric energy meters, transformers, electricity information collection terminals and related accessories. In principle, the metal or non-metal metering box adopts a modular structure design, that is, the inlet room, the metering room and the outlet room are common modules, and the centralized measuring boxes of different specifications are implemented by combination. The installation method is hanging type, embedded, floor type, and is installed outdoors in hanging type, floor type, and equipped with rain cap.
Note: The housing has metal or non-metal SMC, ABS+PC and so on.

Or the non-metal metering box adopts the modular structure design in principle, that is, the incoming line room, the measuring room and the outlet room are common modules, and the centralized measuring boxes of different specifications are implemented by combination. The installation method is hanging type, embedded, floor type, and is installed outdoors in hanging type, floor type, and equipped with rain cap.
Note: The housing has metal or non-metal SMC, ABS+PC and so on.

A special box for low-voltage metering of power users, used to install metering equipment such as electric energy meters, transformers, electricity information collection terminals and related accessories. In principle, the metal or non-metal metering box adopts a modular structure design, that is, the inlet room, the metering room and the outlet room are common modules, and the centralized measuring boxes of different specifications are implemented by combination. The installation method is hanging type, embedded, floor type, and is installed outdoors in hanging type, floor type, and equipped with rain cap.
Note: The housing has metal or non-metal SMC, ABS+PC and so on.

A special box for low-voltage metering of power users, used to install metering equipment such as electric energy meters, transformers, electricity information collection terminals and related accessories. In principle, the metal or non-metal metering box adopts a modular structure design, that is, the inlet room, the metering room and the outlet room are common modules, and the centralized measuring boxes of different specifications are implemented by combination. The installation method is hanging type, embedded, floor type, and is installed outdoors in hanging type, floor type, and equipped with rain cap.
Note: The housing has metal or non-metal SMC, ABS+PC and so on.

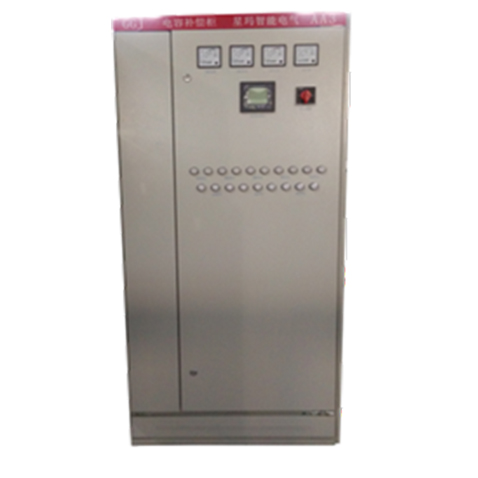

The low-voltage reactive power compensation cabinet is used for reactive power compensation of the low-voltage power grid to improve the power factor of the power grid, reduce the line loss, and improve the power quality. The series of low-voltage reactive power compensation cabinets are based on intelligent reactive power controllers. Capacitor type contactors are used as switching devices for capacitor banks, or smart capacitors are used. The switching capacitors are automatically switched according to the power factor of the grid to ensure the grid is always Has a higher power factor.

GCK type switchgear is a full-assembled combination structure, and has high breaking capacity, good dynamic thermal stability, advanced and reasonable structure, flexible electrical scheme, series, versatility, arbitrary combination of various scheme units, and the number of circuits accommodated. More, saves floor space, high level of protection, safe and reliable, and easy maintenance.

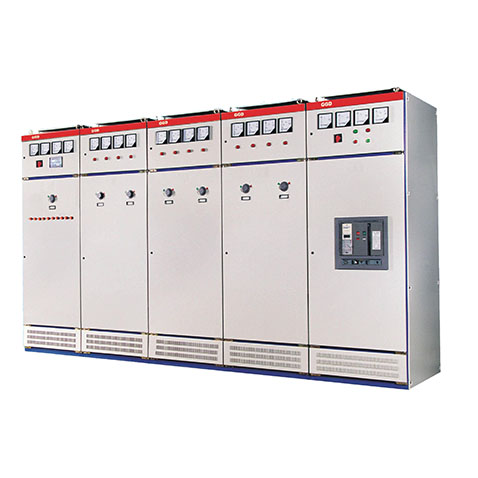

The cabinet of SMS-GGD AC low-voltage power distribution cabinet adopts the form of universal cabinet. The main frame is partially welded by cold-formed steel. The modular design of the cabinet can maximize the aesthetics and versatility of the cabinet.

DFW outdoor AC high voltage cable branch box is a new type of power supply equipment specially designed by our company to cooperate with cable users and branches in 10kV power network cable system. Applicable to urban streets, industrial and mining enterprises, residential areas, high-rise buildings, airports, terminals and other places. It has full insulation, full sealing, all weather; anti-flooding, anti-fouling, anti-condensation, anti-corrosion; compact structure, small size, convenient installation, maintenance-free; beautiful appearance, and consistent with the surrounding environment.
